2020 China customized carbon-graphite graphite bush bearing bushes OEM ODM accepted

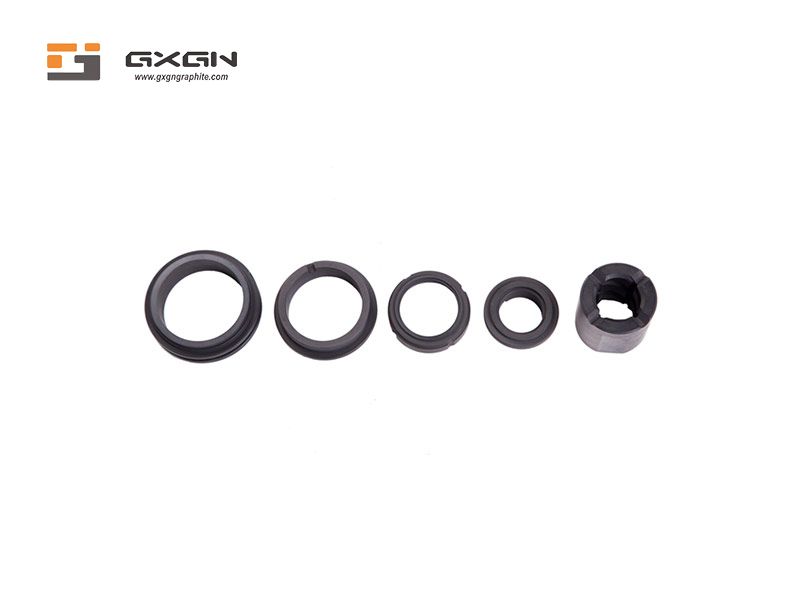

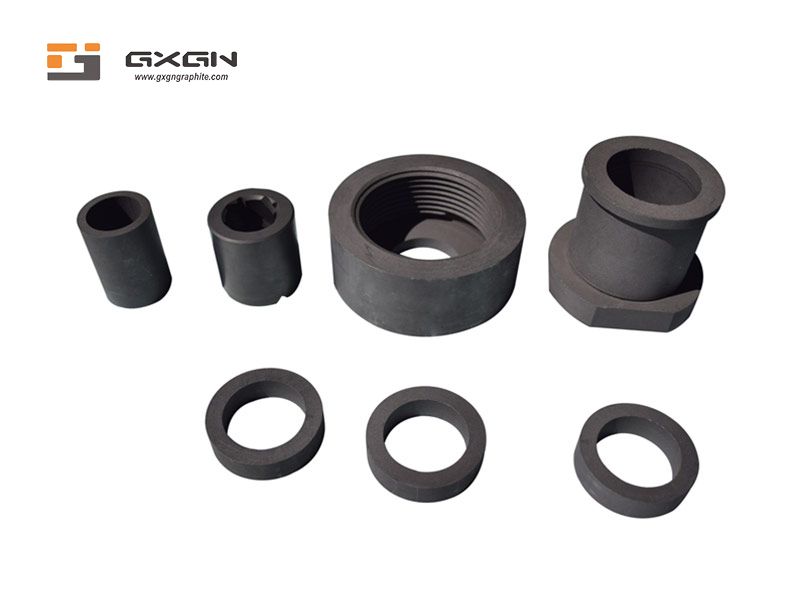

The graphite bush bearings that we offer are used as bush bearings. These are used where oil and grease lubricants do not work with corrosive liquids and gases, in such cases contamination by conventional lubricants are to be avoided.
Product Description
The graphite bush bearings that we offer are used as bush bearings. These are used where oil and grease lubricants do not work with corrosive liquids and gases, in such cases contamination by conventional lubricants are to be avoided.
These graphite bushes are also used for machining into parts of required sizes, mainly for making Carbon seals for mechanical seals
Product Parameters
| Category | Bulk Density | Resistivity | Shore Hardness | Flexural Strength | Compressive Strength | Young's Modulus | Porosity | Ash Content | Grain Size | Coefficient of Thermal Expansion | Thermal Conductivity | Application Fields | |
| g/cm³ | μΩm | HSD | Mpa | Mpa | Gpa | % | PPM | μm | (indoor temp~600℃) 10^-6/℃ | (100℃) W/m﹒k | |||
| Molded Graphite | GXMG-1 | 1.65 | 11~14 | 30 | 15 | 28 | 15 | 23% | / | 4mm | 2.6 | 50~60 | Crucible, Conventional Cast, etc |
| GXMG-2 | 1.68 | 11~14 | 35 | 17 | 35 | 13 | 20% | / | 2mm | 3.5 | 60~80 | Crucible, Conventional Cast, Carbon Brushest, etc | |
| GXMG-3 | 1.70 | 10~13 | 42 | 15 | 35 | 14 | 18% | / | 0.8mm | 1.8 | 62~80 | Crucible, Alloy Cast, Carbon Brushest, etc | |
| GXMG-4 | 1.72 | 10~13 | 42 | 24 | 40 | 13 | 17% | / | 0.8mm | 1.5 | 65~85 | Crucible, Alloy Cast, Sintering Mold, Rodt, etc | |
| GXMG-5 | 1.75 | 10~13 | 45 | 28 | 55 | 13 | 15% | 800 | / | 1.8 | 65~85 | Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rodt, etc | |
| GXMG-6 | 1.78 | 9~12 | 46 | 28 | 58 | 12 | 12% | 800 | / | 4.5 | 80~100 | Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc | |
| Isostatic Graphite | GXIG-1 | 1.75 | 10~13 | 42 | 35 | 60 | 9 | 16% | 500 | 13~18μm | 4.8 | 80~120 | Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc |
| GXIG-2 | 1.78 | 9~12 | 42~50 | 38 | 70 | 10 | 12% | 500 | 10~15μm | 4.8 | 80~100 | Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc | |
| GXIG-3 | 1.80 | 9~13 | 45~60 | 40 | 95 | 11 | 12% | 500 | 9~15μm | 4.8 | 85~110 | EDM, Furnace, Sintering Mold, Noble Metal Metallurgyt, etc | |
| GXIG-4 | 1.82 | 9~13 | 50 | 46 | 96 | 10 | 12% | 500 | 13~15μm | 5 | 90~110 | photovoltaic, EDM, Sintering Mold, Noble Metal Metallurgyt, etc | |
| GXIG-5 | 1.85 | 9~12 | 48 | 48 | 95 | 11 | 12% | 500 | 13~15μm | 5 | 95~115 | ||
| GXIG-6 | 1.88 | 9~15 | 60 | 52 | 110 | 10 | 8% | 500 | 8~10μm | 5.5 | 95~120 | Fuel Cell, 3D Glass Moldt, etc | |
| GXIG-7 | 1.90 | 9~14 | 70 | 55 | 125 | 11 | / | / | 8~10μm | 5.5 | 100~130 | Semiconductor, photovoltaict, etc | |
| Mechanical graphite | M106H | 1.69~1.78 | / | 75 | 60 | 160 | / | 3% | / | / | 4.0 | 13 | Sealing, bearing, compressor carbon vane, pump accessories (temperature tolerance: <220℃)t, etc |
| M120K | 1.7~1.85 | / | 75 | 62 | 150 | / | 3% | / | / | 4.0 | 13 | ||
| M106D | 2.2~2.3 | / | 70 | 60 | 160 | / | 2% | / | / | 4.0 | 15 | Sealing, bearing (temperature tolerance:<350℃ under aerobic conditions, <550℃ under anaerobic conditions)t, etc | |
| M120D | 2.2~2.3 | / | 75 | 65 | 160 | / | 2% | / | / | 4.0 | 15 | ||
| M170D | 2.2~2.3 | / | 80 | 65 | 180 | / | 2% | / | / | 4.0 | 15 | ||
Certificate
Packing & Delivery
1. Inside: use PE packaging and paste specification parameters
2. For short-distance: use carton packaging & inside foam board filling up interspace (appearance can be selected without text)
3. For long-distance transportation using carton + plywood box packaging (appearance of DIY text)
4. Delivery Port: Tianjin
Graphite Products Lead Time: 10-15 days after the order confirmation. Delivery by Express, Air also accepted.
FAQ
Q1. Are you a factory or trading company?
Q2. Can you introduce your main products?
Beijing Guang Xin Guo Neng Technology Co., Ltd mainly produce graphite products, we can offer customized shape according to customers' specific demand. Our Graphite Products, include extruded graphite products, vibration moulding graphite products, molded graphite products, isostatic graphite products. We can produce a lot of graphite products, like graphite mold, graphite casting die, graphite heating element, graphite crucible, graphite sealing ring, graphite tube, graphite rod, graphite edm, graphite block etc.
Q3.What is your MOQ?
Q4. Can you offer free samples?
Q5. When can I get the price?
Q6. Do you accept OEM or ODM orders?
Q7. How about your delivery time?
Q8. Do you test your goods before delivery?
Q9. How do you keep long-term business relationship?
Notice: When you contact us, please show us the accurate drawing and your selected graphite material information, then we can offer you accurate price.
