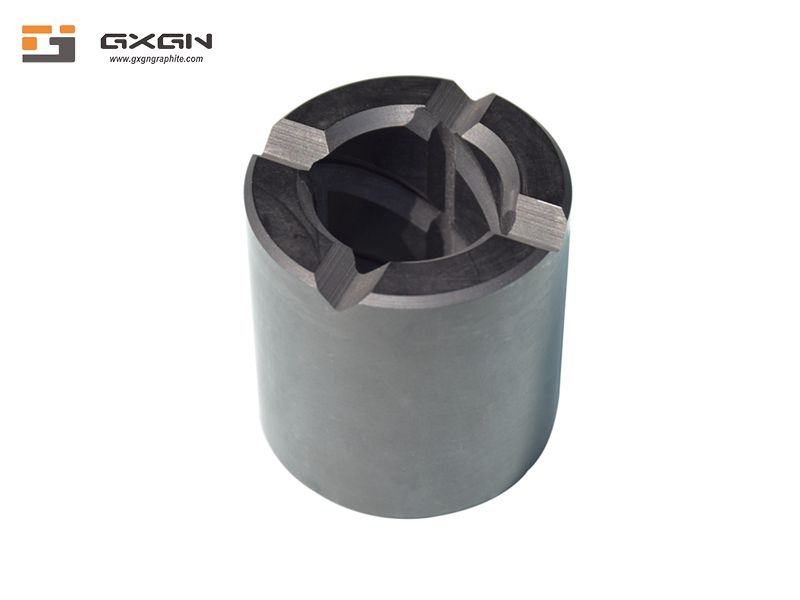

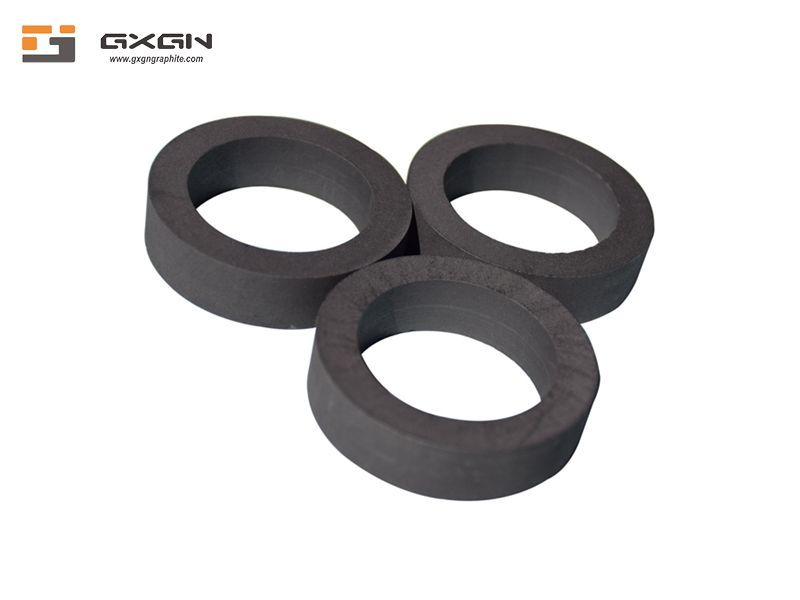

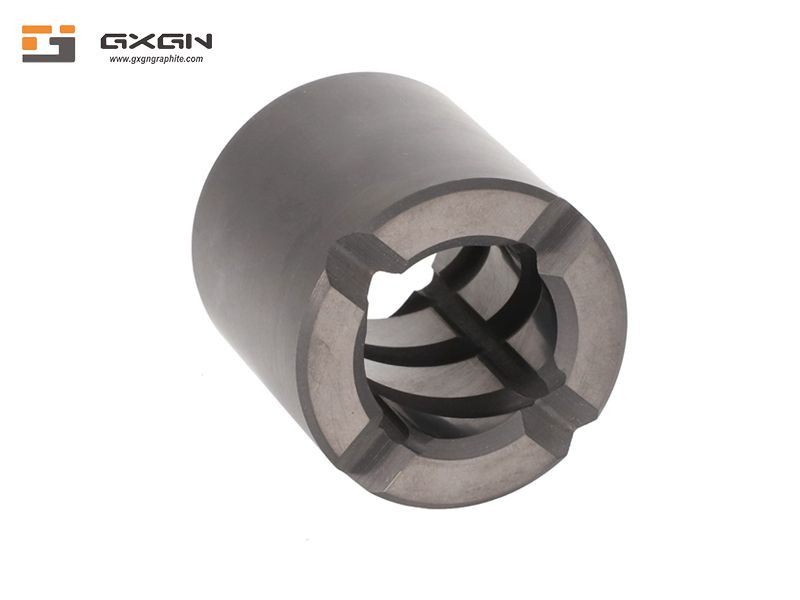

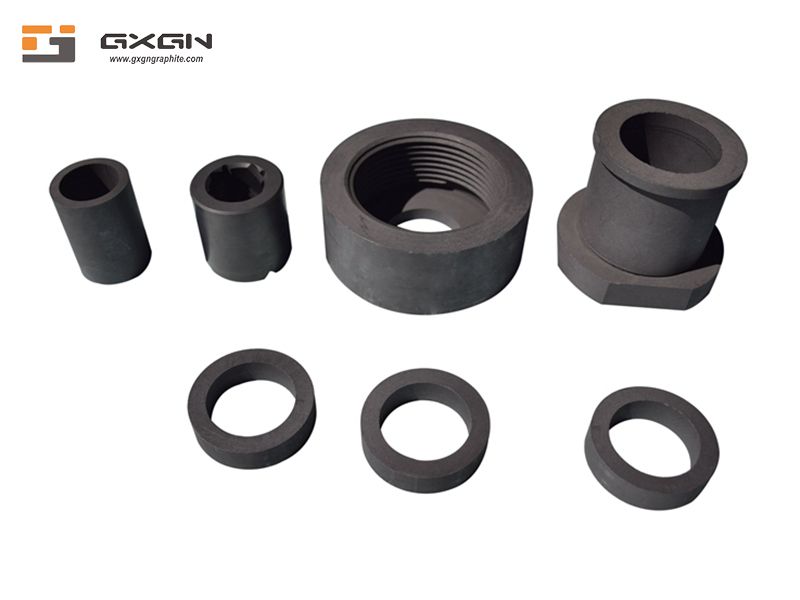

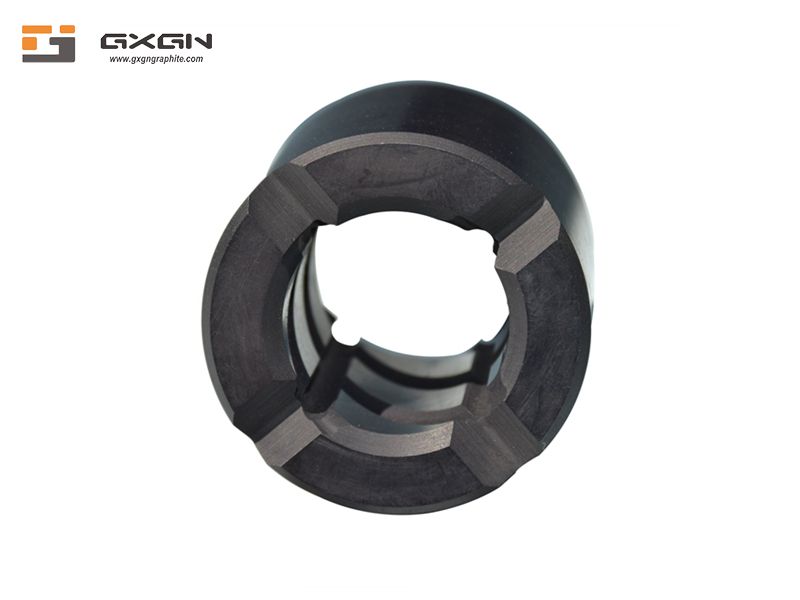

China customized carbon-graphite graphite carbon bush bearing bushes OEM ODM accepted
Graphite carbon bearing and graphit carbon bush bearing, carbon bushing bearing can be used in foundry, metallurgy, various high temperature industrial furnaces, glass, chemical, mechanical and electric power industries.
Product Description
China customized carbon-graphite carbon bush bearing bushes OEM ODM accepted
Application:
Graphite carbon bearing and graphit carbon bush bearing, carbon bushing bearing can be used in foundry, metallurgy, various high temperature industrial furnaces, glass, chemical, mechanical and electric power industries.
Bearings are a kind of sliding parts commonly used in the machinery industry, and the materials are different in metal, non-metal and composite materials. Graphite bearing is a graphite bearing developed and developed on the basis of metal bearings with the performance requirements of mechanical equipment, with graphite material as the main substrate.
Bearings are divided into rolling bearings and sliding bearings.
Graphite lubricated bearings are mostly used for sliding bearings. It is used in the bearings of transportation machines, dryers, textile machines, submersible pump motors and other industrial sectors in food, beverage, textile, chemical and other industrial sectors. These parts, such as grease lubricants, will inevitably cause pollution, and the self-lubricating properties of graphite bearings are very high. Strong, corrosion-resistant, long-term operation is possible without using lubricating oil.
Lubricants for graphite embedded bearings are generally solid lubricants, which are synthesized from a variety of materials with good lubricating properties, and are embedded in solid materials that play a self-lubricating role in bearings and sliders. Under certain conditions, it can replace traditional lubricants to achieve good self-lubricating effect.
Graphite bearings have more advantages than metal bearings, mainly manifested in: self-lubrication, high temperature resistance, corrosion resistance, light weight, etc. Bearings are divided into rolling bearings and sliding bearings. Graphite bearings are mostly used for sliding bearings. It is used in the bearings of transportation machines, dryers, textile machines, submersible pump motors and other industrial sectors in food, beverage, textile, chemical and other industrial sectors. These parts, such as grease lubricants, will inevitably cause pollution, and the self-lubricating properties of graphite bearings are very high. Strong, corrosion-resistant, long-term operation is possible without using lubricating oil.
Graphite bearing wear: Graphite bearing wear depends on its material, shaft material and surface conditions, total pressure, speed and surrounding environment. Generally speaking, the static friction of graphite bearings is smaller than that of metal bearings under the same conditions. The wear resistance of copper graphite bearings based on graphite bearings has been greatly improved.
Graphite bearings have complete specifications, rich models, easy installation and a wide range of applications. The main applications are as follows:
1. Applied in the place where the use of grease lubricant is not allowed when the bearing is running
For example, transport aircraft used in industrial sectors such as food, beverage, textile, and chemical industries. Grease lubricants are banned in these places, and carbon-graphite bearings have strong self-lubricating properties and can be used for dry operation without the use of lubricants. Therefore, they can be widely used in these departments.
2. Applied in places where ordinary bearings cannot be used due to high temperature
Carbon graphite bearings can be used for bearings of ingot conveyors, boiler preheaters and flame tube ventilation doors and blowers in boiler rooms, high-temperature furnace feeders, feeders in the iron and steel industry, and flue valve regulators. Can guarantee its normal operation.
3. Application in chemical and textile industries
Some bearings operate in corrosive gases or liquids. In this case, not only the use of grease lubricants is prohibited, but metal bearings will also be corroded quickly. Due to the corrosion resistance of graphite bearings, it has been widely used in these industries.
Product Parameters
| Category | Bulk Density | Resistivity | Shore Hardness | Flexural Strength | Compressive Strength | Young's Modulus | Porosity | Ash Content | Grain Size | Coefficient of Thermal Expansion | Thermal Conductivity | Application Fields | |
| g/cm³ | μΩm | HSD | Mpa | Mpa | Gpa | % | PPM | μm | (indoor temp~600℃) 10^-6/℃ | (100℃) W/m﹒k | |||
| Molded Graphite | GXMG-1 | 1.65 | 11~14 | 30 | 15 | 28 | 15 | 23% | / | 4mm | 2.6 | 50~60 | Crucible, Conventional Cast, etc |
| GXMG-2 | 1.68 | 11~14 | 35 | 17 | 35 | 13 | 20% | / | 2mm | 3.5 | 60~80 | Crucible, Conventional Cast, Carbon Brushest, etc | |
| GXMG-3 | 1.70 | 10~13 | 42 | 15 | 35 | 14 | 18% | / | 0.8mm | 1.8 | 62~80 | Crucible, Alloy Cast, Carbon Brushest, etc | |
| GXMG-4 | 1.72 | 10~13 | 42 | 24 | 40 | 13 | 17% | / | 0.8mm | 1.5 | 65~85 | Crucible, Alloy Cast, Sintering Mold, Rodt, etc | |
| GXMG-5 | 1.75 | 10~13 | 45 | 28 | 55 | 13 | 15% | 800 | / | 1.8 | 65~85 | Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rodt, etc | |
| GXMG-6 | 1.78 | 9~12 | 46 | 28 | 58 | 12 | 12% | 800 | / | 4.5 | 80~100 | Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc | |
| Isostatic Graphite | GXIG-1 | 1.75 | 10~13 | 42 | 35 | 60 | 9 | 16% | 500 | 13~18μm | 4.8 | 80~120 | Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc |
| GXIG-2 | 1.78 | 9~12 | 42~50 | 38 | 70 | 10 | 12% | 500 | 10~15μm | 4.8 | 80~100 | Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc | |
| GXIG-3 | 1.80 | 9~13 | 45~60 | 40 | 95 | 11 | 12% | 500 | 9~15μm | 4.8 | 85~110 | EDM, Furnace, Sintering Mold, Noble Metal Metallurgyt, etc | |
| GXIG-4 | 1.82 | 9~13 | 50 | 46 | 96 | 10 | 12% | 500 | 13~15μm | 5 | 90~110 | photovoltaic, EDM, Sintering Mold, Noble Metal Metallurgyt, etc | |
| GXIG-5 | 1.85 | 9~12 | 48 | 48 | 95 | 11 | 12% | 500 | 13~15μm | 5 | 95~115 | ||
| GXIG-6 | 1.88 | 9~15 | 60 | 52 | 110 | 10 | 8% | 500 | 8~10μm | 5.5 | 95~120 | Fuel Cell, 3D Glass Moldt, etc | |
| GXIG-7 | 1.90 | 9~14 | 70 | 55 | 125 | 11 | / | / | 8~10μm | 5.5 | 100~130 | Semiconductor, photovoltaict, etc | |
| Mechanical graphite | M106H | 1.69~1.78 | / | 75 | 60 | 160 | / | 3% | / | / | 4.0 | 13 | Sealing, bearing, compressor carbon vane, pump accessories (temperature tolerance: <220℃)t, etc |
| M120K | 1.7~1.85 | / | 75 | 62 | 150 | / | 3% | / | / | 4.0 | 13 | ||
| M106D | 2.2~2.3 | / | 70 | 60 | 160 | / | 2% | / | / | 4.0 | 15 | Sealing, bearing (temperature tolerance:<350℃ under aerobic conditions, <550℃ under anaerobic conditions)t, etc | |
| M120D | 2.2~2.3 | / | 75 | 65 | 160 | / | 2% | / | / | 4.0 | 15 | ||
| M170D | 2.2~2.3 | / | 80 | 65 | 180 | / | 2% | / | / | 4.0 | 15 | ||
Our Strength
We focus on graphite processing for 20 years and have rich design and processing experience. Protect your most concerned data (material indicators, product quality, delivery time, cost and accuracy).
There are dozens of product designers, mold designers, programmers, craftsmen and other technical personnel; skilled technicians will ensure that your products are processed and delivered as required.
No matter which drawing file you send (x_t / prt / dwg / pdf / exb, ect ..), we can process it according to the drawings.
Dozens of CNC machining centers, dozens of CNC lathes, milling machines, grinding machines, sawing machines, etc.
Material indicators: tear resistance, compression resistance, impact resistance, resistivity, ash, strength, density and other data professional testing (universal testing machine, impact testing machine, resistivity tester, etc.)
We can design graphite mold by customer's parts drawing, and process all kinds of complex and special shape mold or other production.
We are the direct supplier of ZGM system with good quality. Inventory: ZGM50/65/80/95/113/123/133 all series carbon ring
Graphite production: all kinds of graphite crucibles, graphite bearings, graphite bush bearing, graphite heaters, graphite junction plates, graphite electrode rods, graphite tubes, graphite bolts, graphite nuts, graphite bearings, graphite sealing rings, and etc.
Packing & Delivery
1. Inside: use PE packaging and paste specification parameters
2. For short-distance: use carton packaging & inside foam board filling up interspace (appearance can be selected without text)
3. For long-distance transportation using carton + plywood box packaging (appearance of DIY text)
4. Delivery Port: Tianjin
Graphite Products Lead Time: 10-15 days after the order confirmation. Delivery by Express, Air also accepted.
FAQ
Q1. Are you a factory or trading company?
Q2. Can you introduce your main products?
Beijing Guang Xin Guo Neng Technology Co., Ltd mainly produce graphite products, we can offer customized shape according to customers' specific demand. Our Graphite Products, include extruded graphite products, vibration moulding graphite products, molded graphite products, isostatic graphite products. We can produce a lot of graphite products, like graphite mold, graphite casting die, graphite heating element, graphite crucible, graphite sealing ring, graphite tube, graphite rod, graphite edm, graphite block etc.
Q3.What is your MOQ?
Q4. Can you offer free samples?
Q5. When can I get the price?
Q6. Do you accept OEM or ODM orders?
Q7. How about your delivery time?
Q8. Do you test your goods before delivery?
Q9. How do you keep long-term business relationship?
Notice: When you contact us, please show us the accurate drawing and your selected graphite material information, then we can offer you accurate price.
