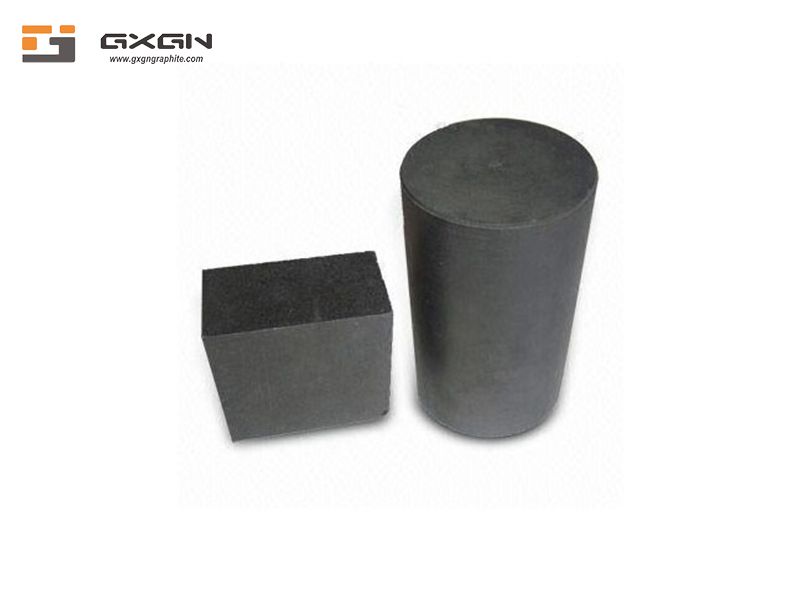

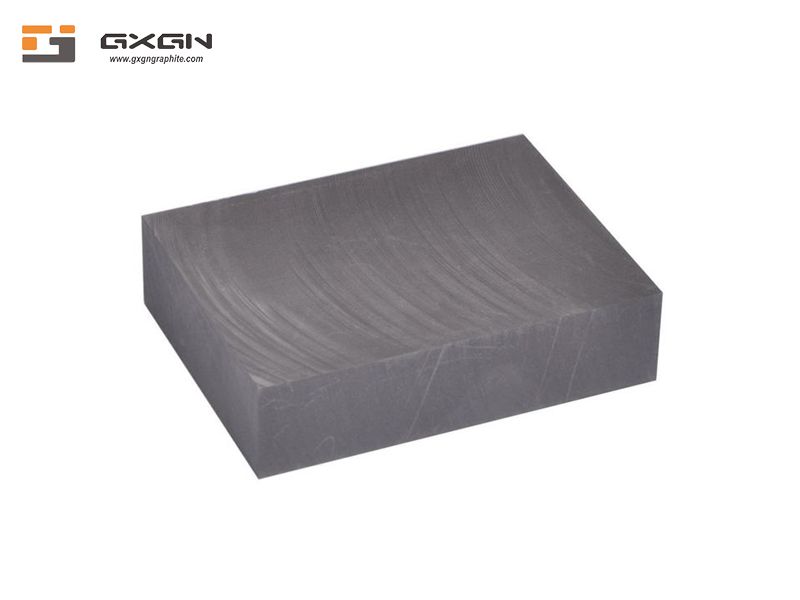

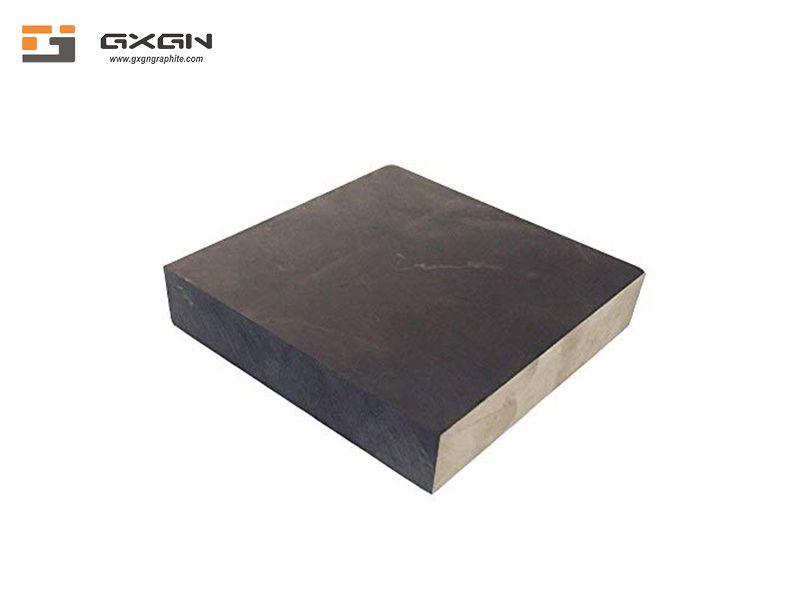

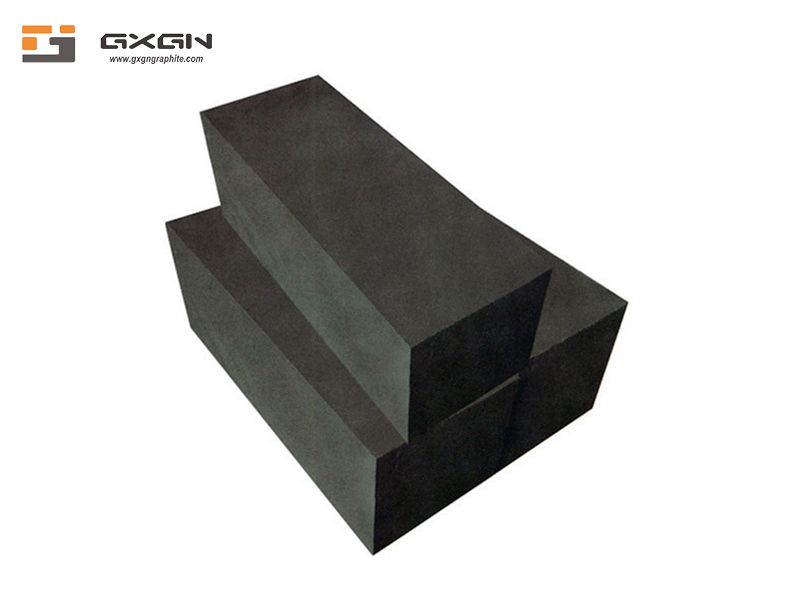

Factory Direct Sale Industrial Carbon Graphite Block
Graphite block is widely used in the foundry, machinery, casting sintering, electrical, mechanical, and metal smelting, etc. The graphite material include molded, extruded, vibrated and isostatic.
Product Description
Factory Direct Sale Industrial Carbon Graphite Block
What are the characteristics of graphite products
Graphite products are all kinds of finished products made by artificial graphite and natural graphite.For example, the core of the battery can be counted, and then graphite rods, graphite blocks, graphite paper, etc., all count, and what graphite is used in industry The rotor is used for cast aluminum, graphite bearings, etc. The products made according to the characteristics of graphite are collectively referred to as graphite products including graphite rods, graphite blocks, graphite plates, graphite carbon tubes, graphite rings, etc.
One of the main uses of graphite is to produce refractory materials, including refractory bricks, crucibles, continuous casting powder, mold cores, molds, detergents and high temperature resistant materials. Because graphite has many excellent properties, it has been widely used in metallurgy, machinery, electrical, chemical, textile, national defense and other industrial sectors. Therefore, graphite products have been widely used in metallurgy, chemical industry, petrochemical industry, high-energy physics, aerospace, electronics, etc.
The following graphite block manufacturers briefly introduce the characteristics of graphite products:
1. Graphite products have excellent adsorption.
The open structure of charcoal makes charcoal have excellent adsorption, so charcoal is often used as adsorption data to adsorb moisture, odor, etc.
2. Graphite products have excellent thermal conductivity, fast heat transfer, uniform heating, and save fuel.
Baking trays made of graphite, pots, etc. heat fast, and the baked food is heated evenly, cooked from the inside out, the heating time is short, not only pure taste, but also can lock the original nutrition of the food.
3. Graphite products have chemical stability and corrosion resistance.
Graphite has excellent chemical stability at room temperature, and is not corroded by any strong acids, strong bases and organic solvents. Therefore, even if the graphite products are used for a long time, there is very little wear and tear, and only the scrubbing and cleaning are the same as the new ones.
4. Graphite products have strong anti-oxidation effect and reduction effect.
Finished products, especially graphite mattresses, can generate negative oxygen ions after heating, activate the surrounding items, maintain human health, effectively prevent aging, and make the skin full of luster and elasticity.
5. Graphite products are environmentally friendly and healthy, no radioactive pollution, high temperature resistance.
Carbon must pass through at least a dozen days and nights of graphitization in a high temperature environment of 2000-3300 degrees to become graphite.
Graphite block is widely used in the foundry, machinery, casting sintering, electrical, mechanical, and metal smelting, etc. The graphite material include molded, extruded, vibrated and isostatic. Our products own the following characteristics: stable quality, good electric and thermal conductivity, greater resistance to thermal and mechanical shock, good corrosion resistancehigh highmechanical strength, high machining accuracy and good impact resistance.
Product Parameters
| Category | Bulk Density | Resistivity | Shore Hardness | Flexural Strength | Compressive Strength | Young's Modulus | Porosity | Ash Content | Grain Size | Coefficient of Thermal Expansion | Thermal Conductivity | Application Fields | |
| g/cm³ | μΩm | HSD | Mpa | Mpa | Gpa | % | PPM | μm | (indoor temp~600℃) 10^-6/℃ | (100℃) W/m﹒k | |||
| Molded Graphite | GXMG-1 | 1.65 | 11~14 | 30 | 15 | 28 | 15 | 23% | / | 4mm | 2.6 | 50~60 | Crucible, Conventional Cast, etc |
| GXMG-2 | 1.68 | 11~14 | 35 | 17 | 35 | 13 | 20% | / | 2mm | 3.5 | 60~80 | Crucible, Conventional Cast, Carbon Brushest, etc | |
| GXMG-3 | 1.70 | 10~13 | 42 | 15 | 35 | 14 | 18% | / | 0.8mm | 1.8 | 62~80 | Crucible, Alloy Cast, Carbon Brushest, etc | |
| GXMG-4 | 1.72 | 10~13 | 42 | 24 | 40 | 13 | 17% | / | 0.8mm | 1.5 | 65~85 | Crucible, Alloy Cast, Sintering Mold, Rodt, etc | |
| GXMG-5 | 1.75 | 10~13 | 45 | 28 | 55 | 13 | 15% | 800 | / | 1.8 | 65~85 | Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rodt, etc | |
| GXMG-6 | 1.78 | 9~12 | 46 | 28 | 58 | 12 | 12% | 800 | / | 4.5 | 80~100 | Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc | |
| Isostatic Graphite | GXIG-1 | 1.75 | 10~13 | 42 | 35 | 60 | 9 | 16% | 500 | 13~18μm | 4.8 | 80~120 | Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc |
| GXIG-2 | 1.78 | 9~12 | 42~50 | 38 | 70 | 10 | 12% | 500 | 10~15μm | 4.8 | 80~100 | Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc | |
| GXIG-3 | 1.80 | 9~13 | 45~60 | 40 | 95 | 11 | 12% | 500 | 9~15μm | 4.8 | 85~110 | EDM, Furnace, Sintering Mold, Noble Metal Metallurgyt, etc | |
| GXIG-4 | 1.82 | 9~13 | 50 | 46 | 96 | 10 | 12% | 500 | 13~15μm | 5 | 90~110 | photovoltaic, EDM, Sintering Mold, Noble Metal Metallurgyt, etc | |
| GXIG-5 | 1.85 | 9~12 | 48 | 48 | 95 | 11 | 12% | 500 | 13~15μm | 5 | 95~115 | ||
| GXIG-6 | 1.88 | 9~15 | 60 | 52 | 110 | 10 | 8% | 500 | 8~10μm | 5.5 | 95~120 | Fuel Cell, 3D Glass Moldt, etc | |
| GXIG-7 | 1.90 | 9~14 | 70 | 55 | 125 | 11 | / | / | 8~10μm | 5.5 | 100~130 | Semiconductor, photovoltaict, etc | |
| Mechanical graphite | M106H | 1.69~1.78 | / | 75 | 60 | 160 | / | 3% | / | / | 4.0 | 13 | Sealing, bearing, compressor carbon vane, pump accessories (temperature tolerance: <220℃)t, etc |
| M120K | 1.7~1.85 | / | 75 | 62 | 150 | / | 3% | / | / | 4.0 | 13 | ||
| M106D | 2.2~2.3 | / | 70 | 60 | 160 | / | 2% | / | / | 4.0 | 15 | Sealing, bearing (temperature tolerance:<350℃ under aerobic conditions, <550℃ under anaerobic conditions)t, etc | |
| M120D | 2.2~2.3 | / | 75 | 65 | 160 | / | 2% | / | / | 4.0 | 15 | ||
| M170D | 2.2~2.3 | / | 80 | 65 | 180 | / | 2% | / | / | 4.0 | 15 | ||
Our Company
Beijing Guang Xin Guo Neng Technology Co., Ltd, was established in 2008 and is located in Beijing, China. As a professional graphite products manufacturer, we are specialized in research, development, production, sale and service of graphite in graphite electrode, graphite mold, graphite powder, graphite rod and other graphite products.
Our products are widely used in various industries and fields such as aerospace, military industry, electric power, railway, non-ferrous metallurgy, machinery, semiconductors, high-temperature furnace heating and so on.
Our company has strong technical strength, excellent manufacturing equipment, standardized management system, superb production technology, and complete testing methods. It is the one of the first group to achieve ISO 9 0 0 1 certification in the same industry.

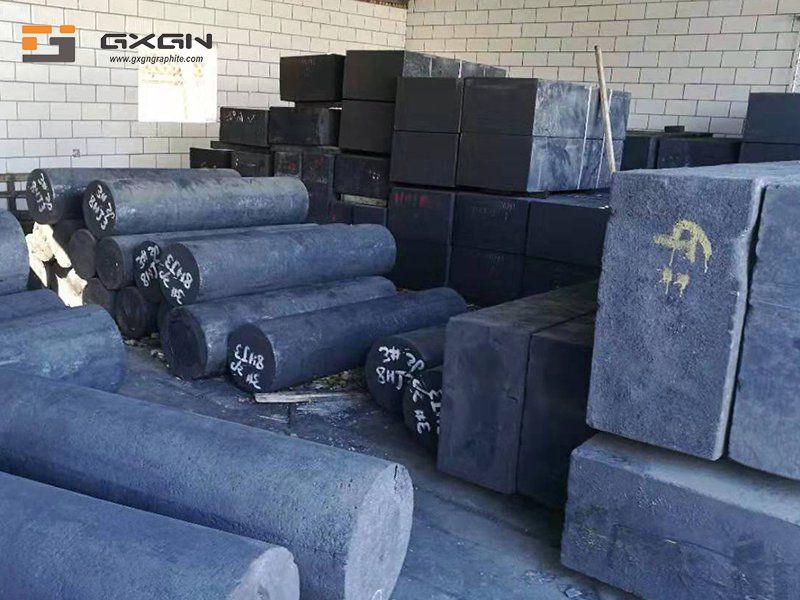

With our own factory and advanced production equipment, such as Vertical Machining Centers, CNC lathes, milling machines, sawing machines and other advanced production equipment, we can provide professional solutions based on customer requirements.
Furthermore, our staffs are experienced, committed to strict quality inspection and thoughtful customer service.
Our products are not only sold well in China, but also exported to India, Vietnam, Thailand, Russia, Germany and North America.
We also undertake OEM and ODM orders. Whether your company is selecting a product from our existing catalog or you are looking for help in engineering applications, please feel free to contact our customer service center and inform us your purchase requirements.
Welcome to visit our factory and cooperate with us in future.
Packing & Delivery
1. Inside: use PE packaging and paste specification parameters
2. For short-distance: use carton packaging & inside foam board filling up interspace (appearance can be selected without text)
3. For long-distance transportation using carton + plywood box packaging (appearance of DIY text)
4. Delivery Port: Tianjin
Lead Time: 10-15 days after the order confirmation. Delivery by Express, Air also accepted.
