High pure custom isostatic graphite block China factory directly supply
High pure custom isostatic graphite block China factory directly supply
Product Description

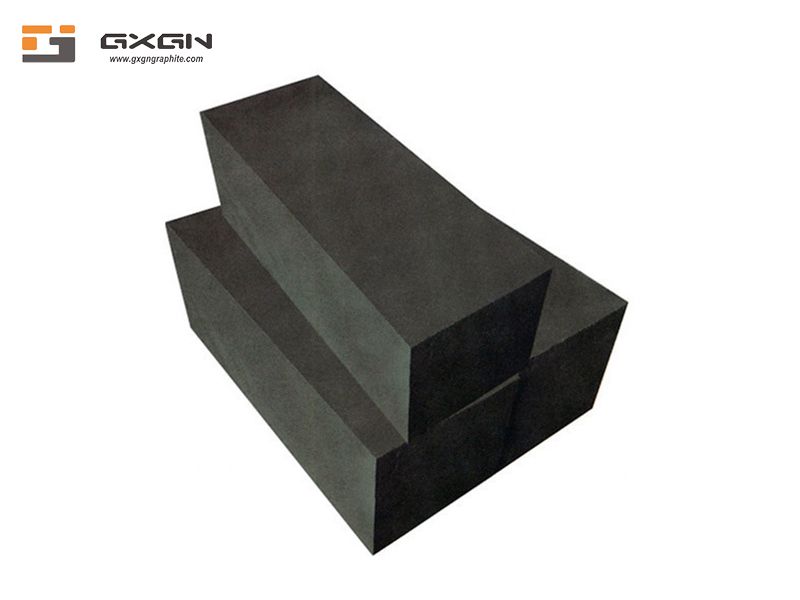

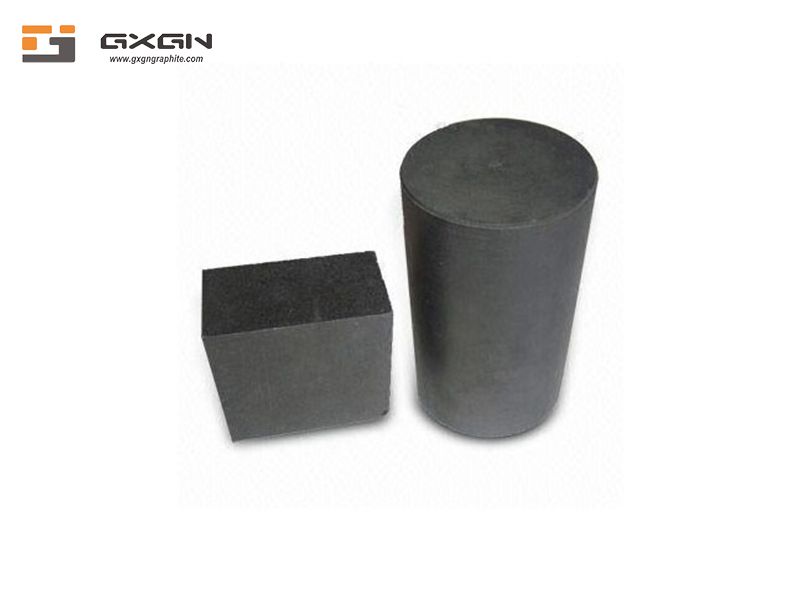

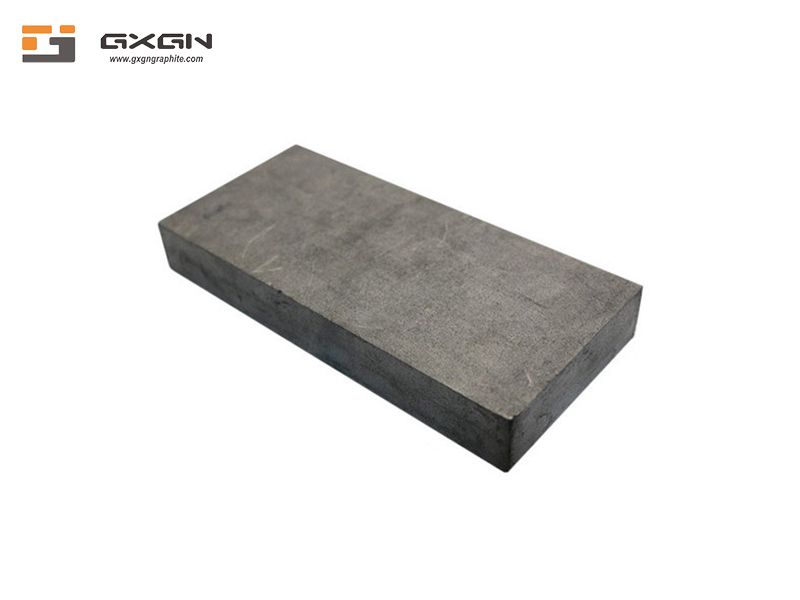

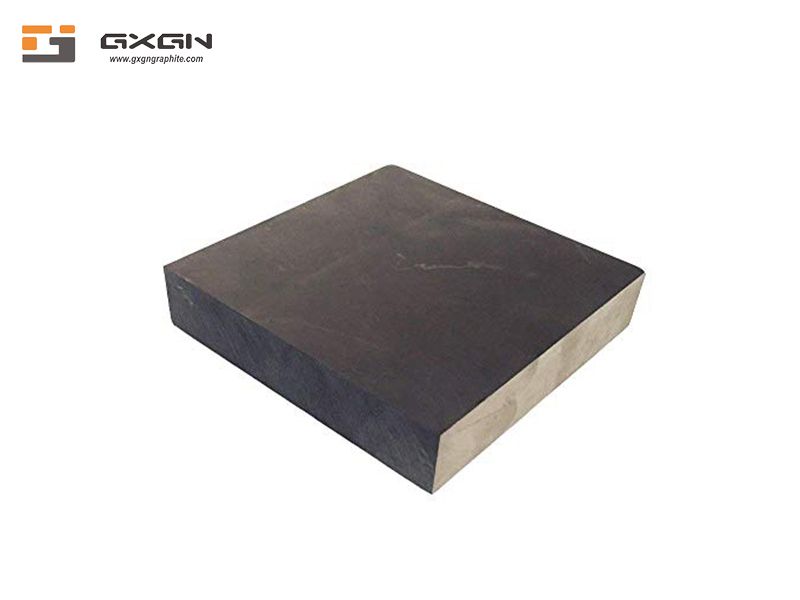

High pure custom isostatic graphite block China factory directly supply
What are the characteristics of graphite products, which are machined by graphite block

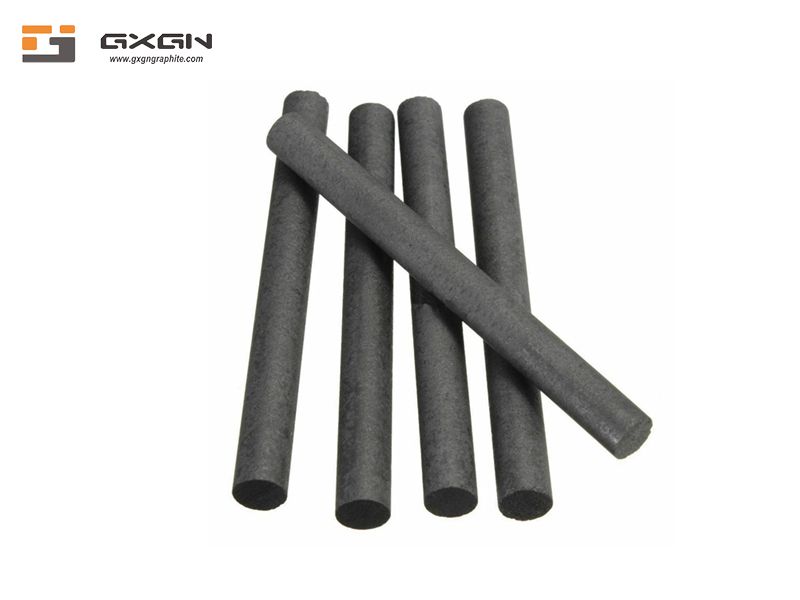

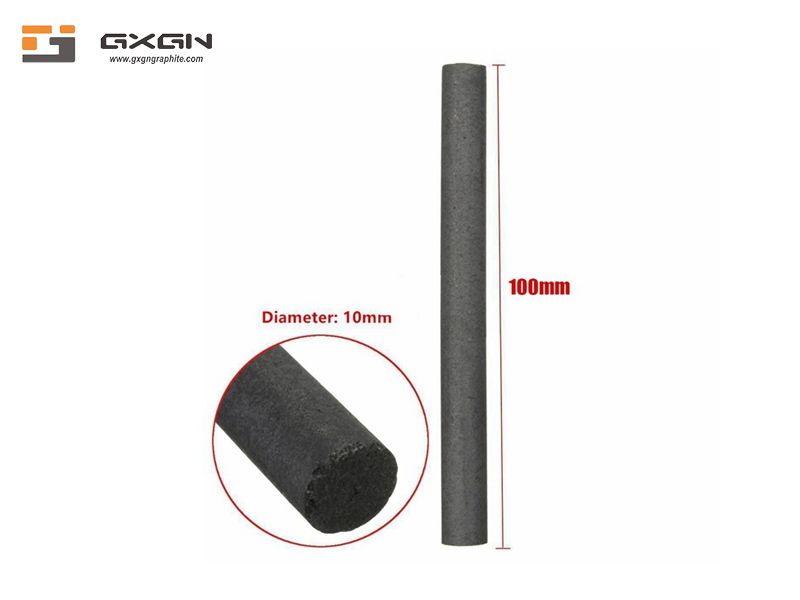

Graphite products are all kinds of finished products made by artificial graphite and natural graphite.For example, the core of the battery can be counted, and then graphite rods, graphite blocks, graphite paper, etc., all count, and what graphite is used in industry The rotor is used for cast aluminum, graphite bearings, etc. The products made according to the characteristics of graphite are collectively referred to as graphite products including graphite rods, graphite blocks, graphite plates, graphite carbon tubes, graphite rings, etc.
One of the main uses of graphite is to produce refractory materials, including refractory bricks, crucibles, continuous casting powder, mold cores, molds, detergents and high temperature resistant materials. Because graphite has many excellent properties, it has been widely used in metallurgy, machinery, electrical, chemical, textile, national defense and other industrial sectors. Therefore, graphite products have been widely used in metallurgy, chemical industry, petrochemical industry, high-energy physics, aerospace, electronics, etc.
The following graphite block manufacturers briefly introduce the characteristics of graphite products:
1. Graphite products have excellent adsorption. The open structure of charcoal makes charcoal have excellent adsorption, so charcoal is often used as adsorption data to adsorb moisture, odor, etc.
2. Graphite products have excellent thermal conductivity, fast heat transfer, uniform heating, and save fuel. Baking trays made of graphite, pots, etc. heat fast, and the baked food is heated evenly, cooked from the inside out, the heating time is short, not only pure taste, but also can lock the original nutrition of the food.
3. Graphite products have chemical stability and corrosion resistance. Graphite has excellent chemical stability at room temperature, and is not corroded by any strong acids, strong bases and organic solvents. Therefore, even if the graphite products are used for a long time, there is very little wear and tear, and only the scrubbing and cleaning are the same as the new ones.
4. Graphite products have strong anti-oxidation effect and reduction effect. Finished products, especially graphite mattresses, can generate negative oxygen ions after heating, activate the surrounding items, maintain human health, effectively prevent aging, and make the skin full of luster and elasticity.
5. Graphite products are environmentally friendly and healthy, no radioactive pollution, high temperature resistance. Carbon must pass through at least a dozen days and nights of graphitization in a high temperature environment of 2000-3300 degrees to become graphite.
Product Parameters
| Category | Bulk Density | Resistivity | Shore Hardness | Flexural Strength | Compressive Strength | Young's Modulus | Porosity | Ash Content | Grain Size | Coefficient of Thermal Expansion | Thermal Conductivity | Application Fields | |
| g/cm³ | μΩm | HSD | Mpa | Mpa | Gpa | % | PPM | μm | (indoor temp~600℃) 10^-6/℃ | (100℃) W/m﹒k | |||
| Molded Graphite | GXMG-1 | 1.65 | 11~14 | 30 | 15 | 28 | 15 | 23% | / | 4mm | 2.6 | 50~60 | Crucible, Conventional Cast, etc |
| GXMG-2 | 1.68 | 11~14 | 35 | 17 | 35 | 13 | 20% | / | 2mm | 3.5 | 60~80 | Crucible, Conventional Cast, Carbon Brushest, etc | |
| GXMG-3 | 1.70 | 10~13 | 42 | 15 | 35 | 14 | 18% | / | 0.8mm | 1.8 | 62~80 | Crucible, Alloy Cast, Carbon Brushest, etc | |
| GXMG-4 | 1.72 | 10~13 | 42 | 24 | 40 | 13 | 17% | / | 0.8mm | 1.5 | 65~85 | Crucible, Alloy Cast, Sintering Mold, Rodt, etc | |
| GXMG-5 | 1.75 | 10~13 | 45 | 28 | 55 | 13 | 15% | 800 | / | 1.8 | 65~85 | Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rodt, etc | |
| GXMG-6 | 1.78 | 9~12 | 46 | 28 | 58 | 12 | 12% | 800 | / | 4.5 | 80~100 | Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc | |
| Isostatic Graphite | GXIG-1 | 1.75 | 10~13 | 42 | 35 | 60 | 9 | 16% | 500 | 13~18μm | 4.8 | 80~120 | Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc |
| GXIG-2 | 1.78 | 9~12 | 42~50 | 38 | 70 | 10 | 12% | 500 | 10~15μm | 4.8 | 80~100 | Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc | |
| GXIG-3 | 1.80 | 9~13 | 45~60 | 40 | 95 | 11 | 12% | 500 | 9~15μm | 4.8 | 85~110 | EDM, Furnace, Sintering Mold, Noble Metal Metallurgyt, etc | |
| GXIG-4 | 1.82 | 9~13 | 50 | 46 | 96 | 10 | 12% | 500 | 13~15μm | 5 | 90~110 | photovoltaic, EDM, Sintering Mold, Noble Metal Metallurgyt, etc | |
| GXIG-5 | 1.85 | 9~12 | 48 | 48 | 95 | 11 | 12% | 500 | 13~15μm | 5 | 95~115 | ||
| GXIG-6 | 1.88 | 9~15 | 60 | 52 | 110 | 10 | 8% | 500 | 8~10μm | 5.5 | 95~120 | Fuel Cell, 3D Glass Moldt, etc | |
| GXIG-7 | 1.90 | 9~14 | 70 | 55 | 125 | 11 | / | / | 8~10μm | 5.5 | 100~130 | Semiconductor, photovoltaict, etc | |
| Mechanical graphite | M106H | 1.69~1.78 | / | 75 | 60 | 160 | / | 3% | / | / | 4.0 | 13 | Sealing, bearing, compressor carbon vane, pump accessories (temperature tolerance: <220℃)t, etc |
| M120K | 1.7~1.85 | / | 75 | 62 | 150 | / | 3% | / | / | 4.0 | 13 | ||
| M106D | 2.2~2.3 | / | 70 | 60 | 160 | / | 2% | / | / | 4.0 | 15 | Sealing, bearing (temperature tolerance:<350℃ under aerobic conditions, <550℃ under anaerobic conditions)t, etc | |
| M120D | 2.2~2.3 | / | 75 | 65 | 160 | / | 2% | / | / | 4.0 | 15 | ||
| M170D | 2.2~2.3 | / | 80 | 65 | 180 | / | 2% | / | / | 4.0 | 15 | ||
Our Strength

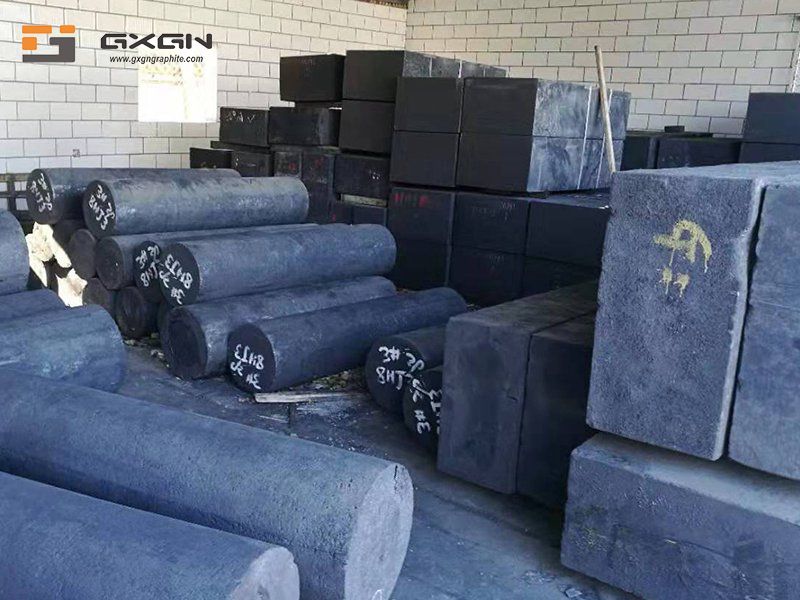

We focus on graphite processing for 20 years and have rich design and processing experience. Protect your most concerned data (material indicators, product quality, delivery time, cost and accuracy).
There are dozens of product designers, mold designers, programmers, craftsmen and other technical personnel; skilled technicians will ensure that your products are processed and delivered as required.
No matter which drawing file you send (x_t / prt / dwg / pdf / exb, ect ..), we can process it according to the drawings.
Dozens of CNC machining centers, dozens of CNC lathes, milling machines, grinding machines, sawing machines, etc.
Material indicators: tear resistance, compression resistance, impact resistance, resistivity, ash, strength, density and other data professional testing (universal testing machine, impact testing machine, resistivity tester, etc.)
We can design graphite mold by customer's parts drawing, and process all kinds of complex and special shape mold or other production.
We are the direct supplier of ZGM system with good quality. Inventory: ZGM50/65/80/95/113/123/133 all series carbon ring
Graphite production: all kinds of crucibles, heaters, junction plates, electrode rods, graphite tubes, bolts and nuts, bearings, sealing rings, and etc.
Packing & Delivery
1. Inside: use PE packaging and paste specification parameters
2. For short-distance: use carton packaging & inside foam board filling up interspace (appearance can be selected without text)
3. For long-distance transportation using carton + plywood box packaging (appearance of DIY text)
4. Delivery Port: Tianjin
Graphite Products Lead Time: 10-15 days after the order confirmation. Delivery by Express, Air also accepted.
FAQ
Q1. Are you a factory or trading company?
Q2. Can you introduce your main products?
Beijing Guang Xin Guo Neng Technology Co., Ltd mainly produce graphite products, we can offer customized shape according to customers' specific demand. Our Graphite Products, include extruded graphite products, vibration moulding graphite products, molded graphite products, isostatic graphite products. We can produce a lot of graphite products, like graphite mold, graphite casting die, graphite heating element, graphite crucible, graphite sealing ring, graphite tube, graphite rod, graphite edm, graphite block etc.
Q3.What is your MOQ?
Q4. Can you offer free samples?
Q5. When can I get the price?
Q6. Do you accept OEM or ODM orders?
Q7. How about your delivery time?
Q8. Do you test your goods before delivery?
Q9. How do you keep long-term business relationship?
Notice: When you contact us, please show us the accurate drawing and your selected graphite material information, then we can offer you accurate price.
