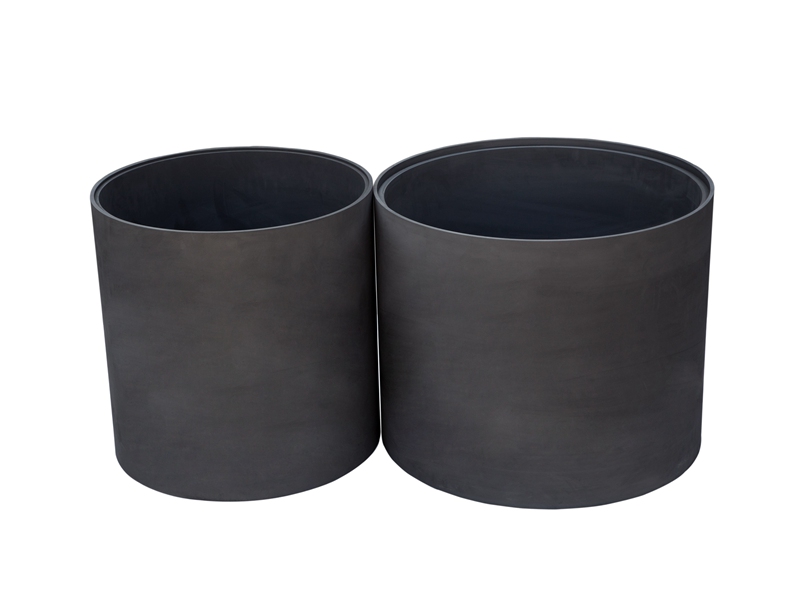

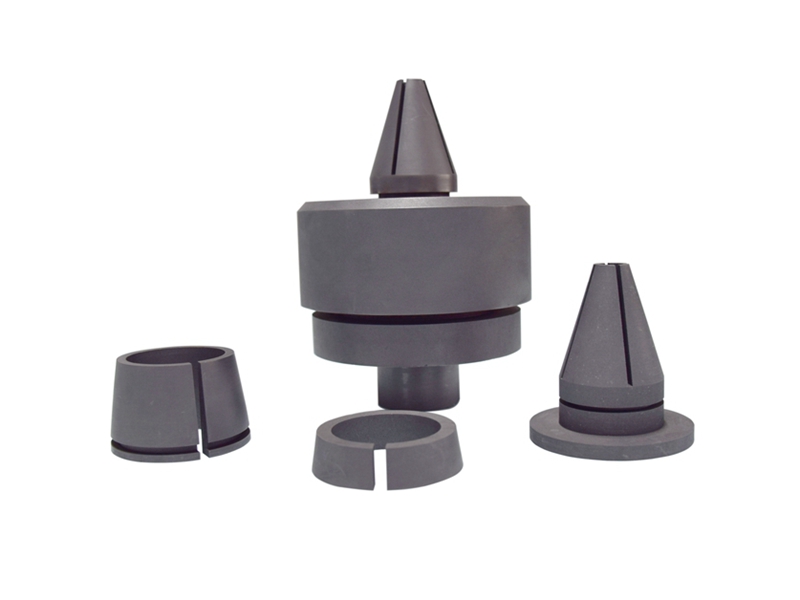

Graphite chuck, graphite supporting rod, graphite crucible pan, graphite outer guide, graphite upper heating shield, graphite bottom heating shield, graphite mid heating shield, made from isostatic graphite with high purity and high strength, can be used in production of mono-crystalline silicon and poly-crystalline silicon.
Reference Specifications:
| Model | Ash Content | Bulk Density | Compressive Strength | Flexural Strength | Specific Resistivity | Grain size | C.T.E |
| ppm | g/cm³ | Mpa | Mpa | μΩm | μm | ×10-6/℃ | |
| GP 1 | 300 | 1.80 | 86 | 40 | 11~13 | <20 | 4.1 |
| GP 2 | 50 | 1.80 | 86 | 44 | 11~13 | <20 | 4.1 |
| GP 3 | 300 | 1.85 | 90 | 45 | 10~12 | <20 | 4.3 |
| GP 4 | 50 | 1.85 | 100 | 55 | 10~12 | <20 | 5.1 |
