Graphite Pot Graphite Crucible for High Temperature Furnace
Beijing Guang Xin Guo Neng Technology CO., Ltd. | 12 Years Graphite Products & Graphite Melting Crucible Manufacturers China | OEM & ODM Accepted | Customized High-precision Processing | ISO 9001 Passed
Product Description

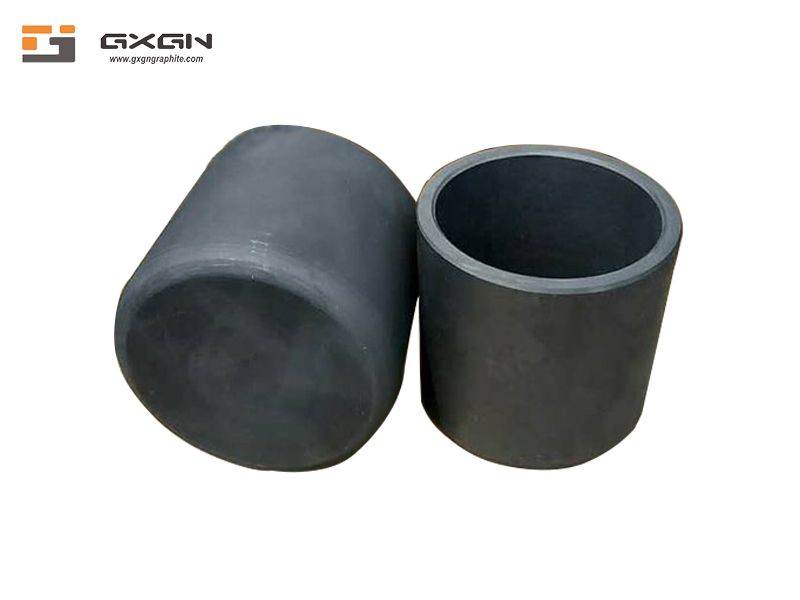

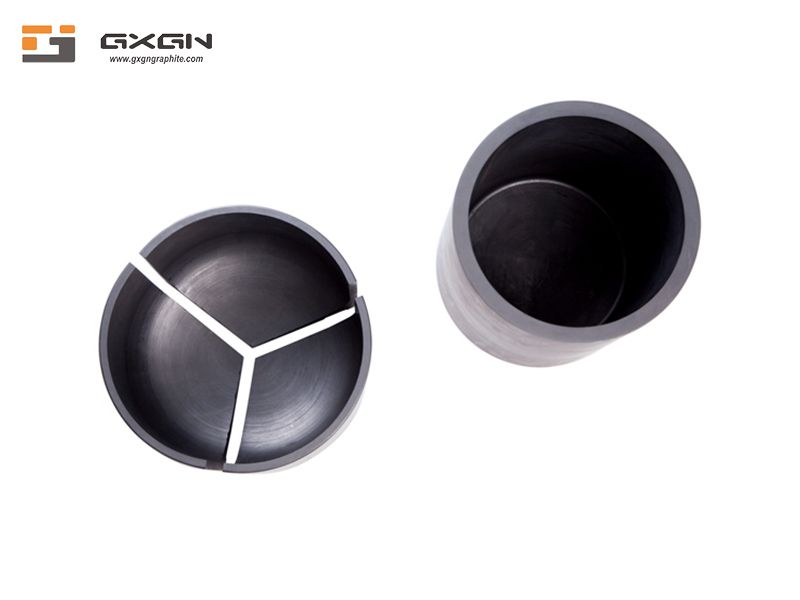

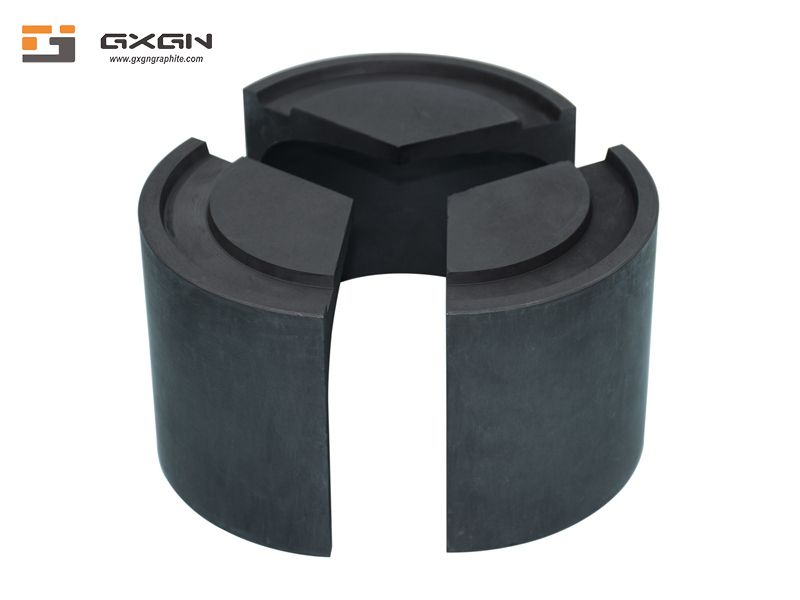

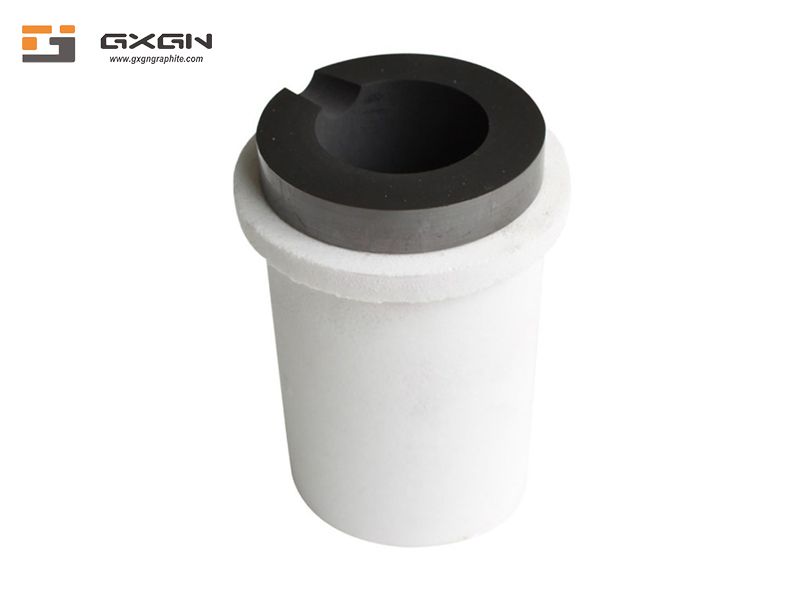

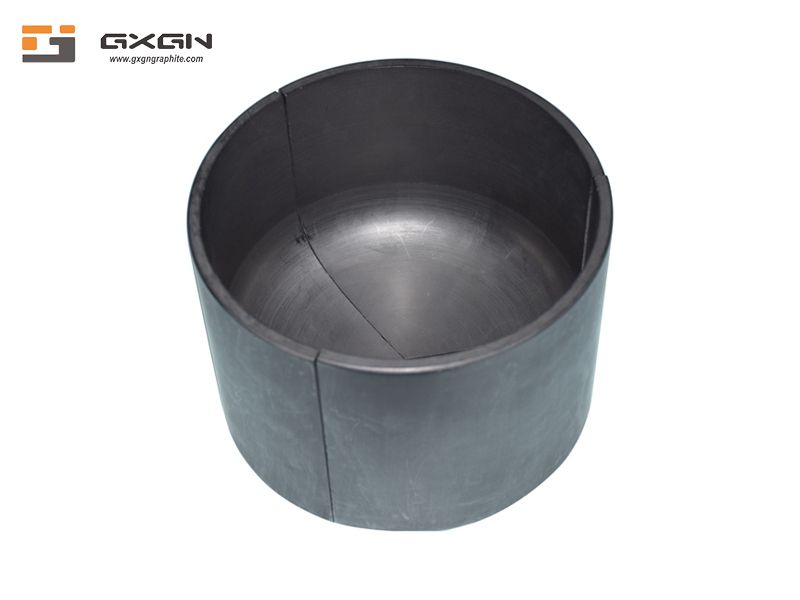

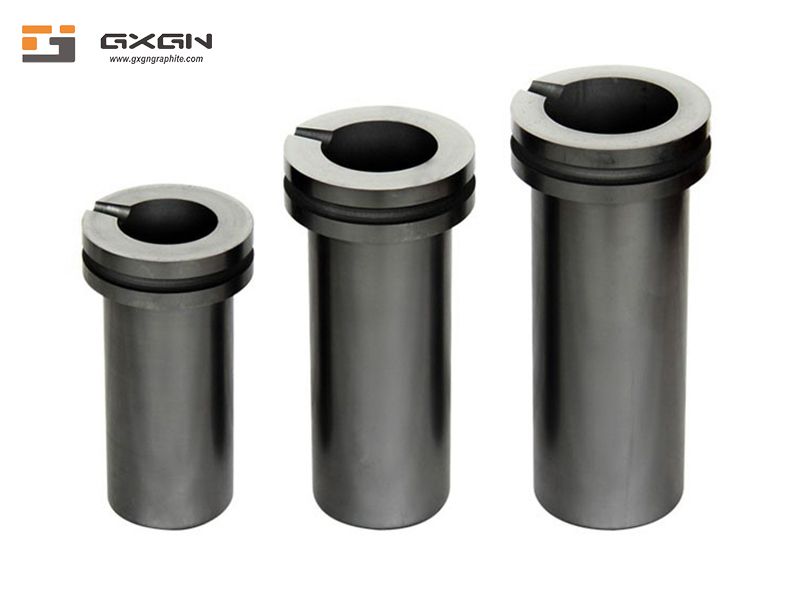

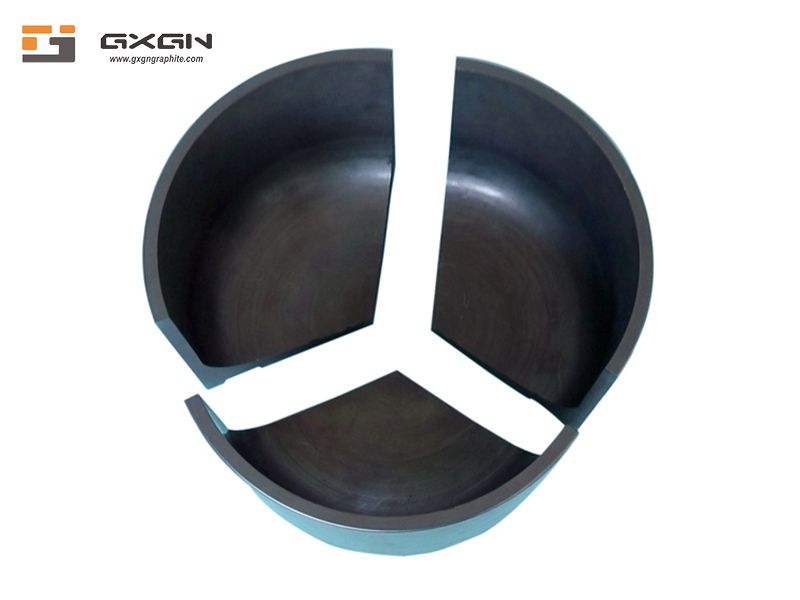

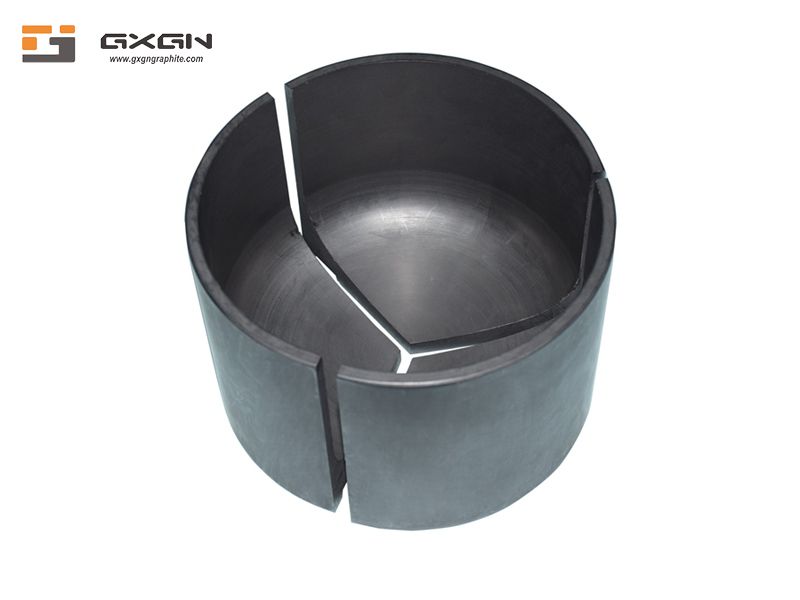

Graphite Pot Graphite Crucible for High Temperature Furnace
Advantage
High strength (Flexural strength: 38/43/55Mpa Compressive strength: 65/86/95Mpa with rising of temperature, graphite strength increases)
High purity (Carbon: 99.5%)
High temperature resistance (graphite material melting point is 3850±50)
Good heat shock resistance.
Remarkable chemical corrosion resistance
Good acid resistance
Size and Shape:
Customized designing and production (machining) available.
Epquipment:
CNC lathes, milling machines and other advanced production equipment for both small and large graphite parts.
Material
Our experienced and well-trained engineers will offer professional suggestions in choosing the most suitable
grade of graphite material for machining graphite mold for you, in order to reach the best effect with lowest cost.
Technical support:
We are glad to have more technical aspect communication in order to improve your purchasing cost efficiency.
Quality stability:
The process technology of forming under high pressure and quality guarantee system will fully ensure the stability of quality.
Large Inventory:
Various material specifications, including electrode graphite, high-purity graphite, isostatic pressing formed graphite and etc.
Product Parameters
| Category | Bulk Density | Resistivity | Shore Hardness | Flexural Strength | Compressive Strength | Young's Modulus | Porosity | Ash Content | Grain Size | Coefficient of Thermal Expansion | Thermal Conductivity | Application Fields | |
| g/cm³ | μΩm | HSD | Mpa | Mpa | Gpa | % | PPM | μm | (indoor temp~600℃) 10^-6/℃ | (100℃) W/m﹒k | |||
| Molded Graphite | GXMG-1 | 1.65 | 11~14 | 30 | 15 | 28 | 15 | 23% | / | 4mm | 2.6 | 50~60 | Crucible, Conventional Cast, etc |
| GXMG-2 | 1.68 | 11~14 | 35 | 17 | 35 | 13 | 20% | / | 2mm | 3.5 | 60~80 | Crucible, Conventional Cast, Carbon Brushest, etc | |
| GXMG-3 | 1.70 | 10~13 | 42 | 15 | 35 | 14 | 18% | / | 0.8mm | 1.8 | 62~80 | Crucible, Alloy Cast, Carbon Brushest, etc | |
| GXMG-4 | 1.72 | 10~13 | 42 | 24 | 40 | 13 | 17% | / | 0.8mm | 1.5 | 65~85 | Crucible, Alloy Cast, Sintering Mold, Rodt, etc | |
| GXMG-5 | 1.75 | 10~13 | 45 | 28 | 55 | 13 | 15% | 800 | / | 1.8 | 65~85 | Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rodt, etc | |
| GXMG-6 | 1.78 | 9~12 | 46 | 28 | 58 | 12 | 12% | 800 | / | 4.5 | 80~100 | Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc | |
| Isostatic Graphite | GXIG-1 | 1.75 | 10~13 | 42 | 35 | 60 | 9 | 16% | 500 | 13~18μm | 4.8 | 80~120 | Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc |
| GXIG-2 | 1.78 | 9~12 | 42~50 | 38 | 70 | 10 | 12% | 500 | 10~15μm | 4.8 | 80~100 | Crucible, Alloy Cast, Sintering Mold, Continuous casting Mold, Rod, Furnacet, etc | |
| GXIG-3 | 1.80 | 9~13 | 45~60 | 40 | 95 | 11 | 12% | 500 | 9~15μm | 4.8 | 85~110 | EDM, Furnace, Sintering Mold, Noble Metal Metallurgyt, etc | |
| GXIG-4 | 1.82 | 9~13 | 50 | 46 | 96 | 10 | 12% | 500 | 13~15μm | 5 | 90~110 | photovoltaic, EDM, Sintering Mold, Noble Metal Metallurgyt, etc | |
| GXIG-5 | 1.85 | 9~12 | 48 | 48 | 95 | 11 | 12% | 500 | 13~15μm | 5 | 95~115 | ||
| GXIG-6 | 1.88 | 9~15 | 60 | 52 | 110 | 10 | 8% | 500 | 8~10μm | 5.5 | 95~120 | Fuel Cell, 3D Glass Moldt, etc | |
| GXIG-7 | 1.90 | 9~14 | 70 | 55 | 125 | 11 | / | / | 8~10μm | 5.5 | 100~130 | Semiconductor, photovoltaict, etc | |
| Mechanical graphite | M106H | 1.69~1.78 | / | 75 | 60 | 160 | / | 3% | / | / | 4.0 | 13 | Sealing, bearing, compressor carbon vane, pump accessories (temperature tolerance: <220℃)t, etc |
| M120K | 1.7~1.85 | / | 75 | 62 | 150 | / | 3% | / | / | 4.0 | 13 | ||
| M106D | 2.2~2.3 | / | 70 | 60 | 160 | / | 2% | / | / | 4.0 | 15 | Sealing, bearing (temperature tolerance:<350℃ under aerobic conditions, <550℃ under anaerobic conditions)t, etc | |
| M120D | 2.2~2.3 | / | 75 | 65 | 160 | / | 2% | / | / | 4.0 | 15 | ||
| M170D | 2.2~2.3 | / | 80 | 65 | 180 | / | 2% | / | / | 4.0 | 15 | ||
Our Company
Beijing Guang Xin Guo Neng Technology Co., Ltd, was established in 2008 and is located in Beijing, China. As a professional graphite products manufacturer, we are specialized in research, development, production, sale and service of graphite in graphite crucible china, graphite mold, graphite crucible dimensions, graphite rod, graphite crucible set and other graphite products.
Our products are widely used in various industries and fields such as aerospace, military industry, electric power, railway, non-ferrous metallurgy, machinery, semiconductors, high-temperature furnace heating and so on.
Our company has strong technical strength, excellent manufacturing equipment, standardized management system, superb production technology, and complete testing methods. It is the one of the first group to achieve ISO 9 0 0 1 certification in the same industry.

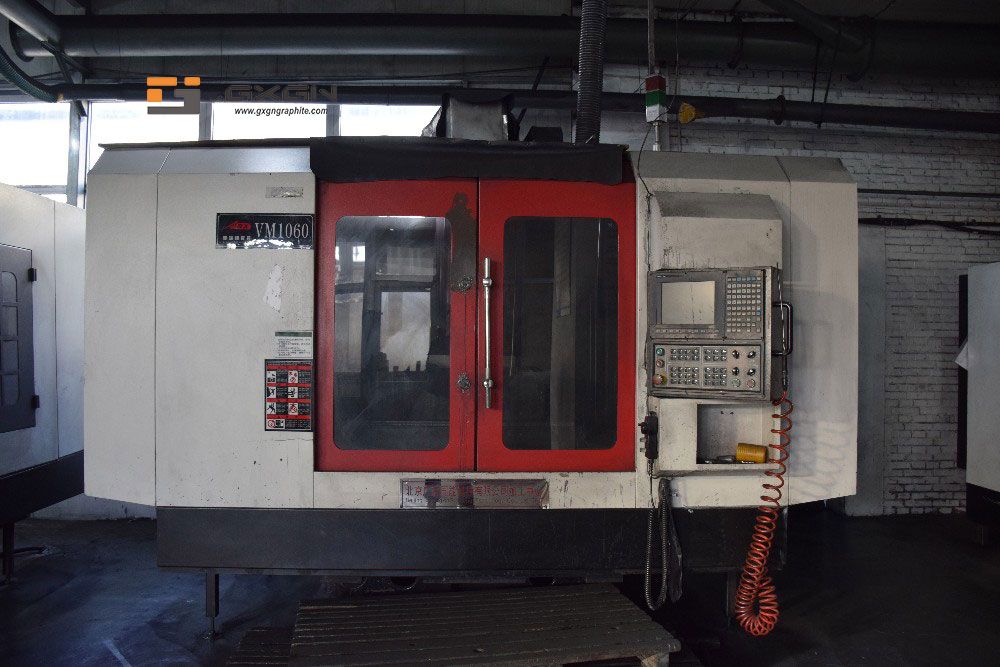

With our own factory and advanced production equipment, such as Vertical Machining Centers, CNC lathes, milling machines, sawing machines and other advanced production equipment, we can provide professional solutions based on customer requirements.
Furthermore, our staffs are experienced, committed to strict quality inspection and thoughtful customer service.
Our products are not only sold well in China, but also exported to India, Vietnam, Thailand, Russia, Germany and North America.
We also undertake OEM and ODM orders. Whether your company is selecting a product from our existing catalog or you are looking for help in engineering applications, please feel free to contact our customer service center and inform us your purchase requirements.
Welcome to visit our factory and cooperate with us in future.
Packing & Delivery
1. Inside: use PE packaging and paste specification parameters
2. For short-distance: use carton packaging & inside foam board filling up interspace (appearance can be selected without text)
3. For long-distance transportation using carton + plywood box packaging (appearance of DIY text)
4. Delivery Port: Tianjin
Graphite Products Lead Time: 10-15 days after the order confirmation. Delivery by Express, Air also accepted.
FAQ
Q1. Are you a factory or trading company?
Q2. Can you introduce your main products?
Beijing Guang Xin Guo Neng Technology Co., Ltd mainly produce graphite products, we can offer customized shape according to customers' specific demand. Our Graphite Products, include extruded graphite products, vibration moulding graphite products, molded graphite products, isostatic graphite products. We can produce a lot of graphite products, like graphite mold, graphite casting die, graphite heating element, graphite crucible, graphite sealing ring, graphite tube, graphite rod, graphite edm, graphite block etc.
Q3.What is your MOQ?
Q4. Can you offer free samples?
Q5. When can I get the price?
Q6. Do you accept OEM or ODM orders?
Q7. How about your delivery time?
Q8. Do you test your goods before delivery?
Q9. How do you keep long-term business relationship?
Notice: When you contact us, please show us the accurate drawing and your selected graphite material information, then we can offer you accurate price.
